Tomy Audio Visual Case Study

Cinos assist Tomy with their European Head Office Relocation Project

Tomy are a leading toy manufacturer with offices and distribution sites spread across Europe, Asia and America. In 2006 Tomy merged with a key competitor, Takara, with the aim of maximising their strengths to become the world’s top toy manufacturer.

Until recently the Tomy European Headquarters were located in Sutton, United Kingdom. It was during this time that Cinos were approached and commissioned to upgrade the Tomy boardroom with control and presentation technologies.

In 2015 Tomy relocated their European Headquarters to the Velocity building; a new state of the art office facility located in Brooklands. Situated on the top floor, Tomy now have an office with stunning contemporary architecture, high environmental standards and a large roof terrace overlooking the historic Brooklands racetrack.

“Cinos have provided first class presentation capabilities at Tomy’s new European Head Office. We have ensured the familiarity of the system has been retained and where possible avoided additional project costs by utilising the same, future-proof technologies from the previous Sutton office.”
Steve Franklin - Technical Director

Download the Tomy Case Study pdf

The Requirement

For Cinos, the office relocation project concerned two key areas; reinstalling the existing boardroom system in the Brooklands office as well as providing a presentation and conferencing solution for the new showroom.

The latest toys and product ranges would be on display in the showroom. As such the room would be used for client meetings, company presentations and product demonstrations. A range of presentation, control and collaborative technologies were required to facilitate the activities of this area.

Barco ClickShare at Tomy Head Office

The Solution

Cinos have delivered an easy to use presentation and collaboration environment within the showroom at Tomy’s new European Headquarters. The technology solution in place has been designed with ‘ease of use’ in mind; enabling users to intuitively operate the system whilst focussing on the business at hand.

Two ceiling mounted NEC projectors provide a crisp viewing experience for showroom users. The strategic positioning of the projectors and projection screens means that any user can see the content regardless of their position in the room. If required, separate sources can be displayed on each projector; allowing users to display presentations whilst viewing the incoming video conferencing feed.

Users can share content at ease thanks to ClickShare from Barco. At the click of a button, via either a USB dongle or the ClickShare App, users can display content from their laptop, tablet or smartphone. Not only does this improve the meeting room experience, the elimination of multiple cables within the room provides a much more aesthetically pleasing presentation environment.

When Tomy need to present or collaborate visually with clients and remote teams they can utilise the Zoom video conferencing client installed on the showroom PC. To deliver the best possible viewing experience Cinos installed two ceiling mounted Logitech C930e webcams. The 90-degree diagonal field of view ensures all participants can be seen clearly and provides the perfect solution for product demonstrations and presentations. Optimal audio coverage is achieved with strategically placed ceiling speakers working in conjunction with the Extron XPA 2001 amplifier.

A range of audio visual technologies were deployed to handle the control and automation needs of the showroom. Users can operate the audio and video sources via the client-branded, wall-mounted AMX user interface. Behind the scenes, the Kramer HDMI matrix switcher and AMX NetLinx controller work together in allowing users to switch between various sources; whether that is sharing content via Barco ClickShare or displaying the incoming video conferencing feed.

Whilst the main focus of this project was to deliver presentation and collaborative capabilities for the showroom, Cinos also had to transfer the existing boardroom technology from Sutton to the new Brooklands office.

Used for internal meetings, the boardroom required a similar level of functionality to the showroom. As a smaller space only one projector was needed. The ability to share content from multiple sources was again achieved through the reinstallation of ClickShare, Logitech webcams and the AMX user interface. The existing automation technology was reutilised with the AMX NetLinx controller and Extron media presentation switcher responding to commands from the room touch panel.

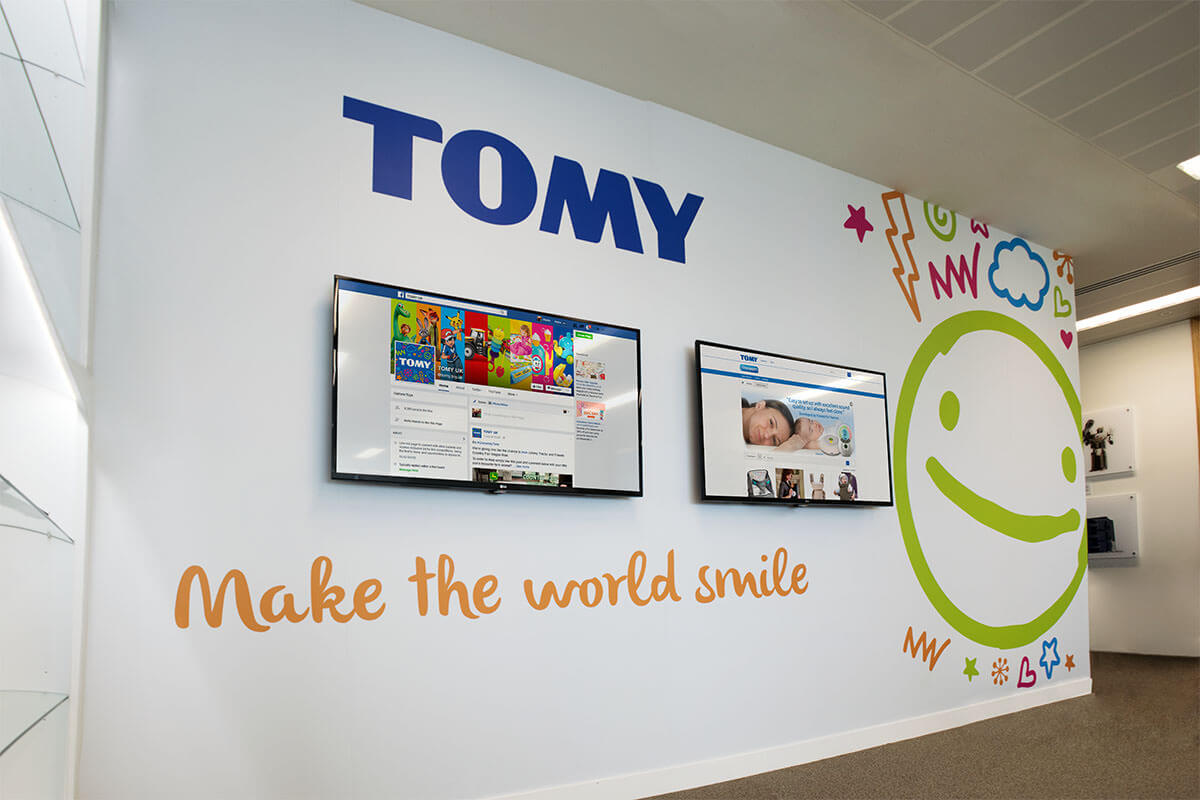

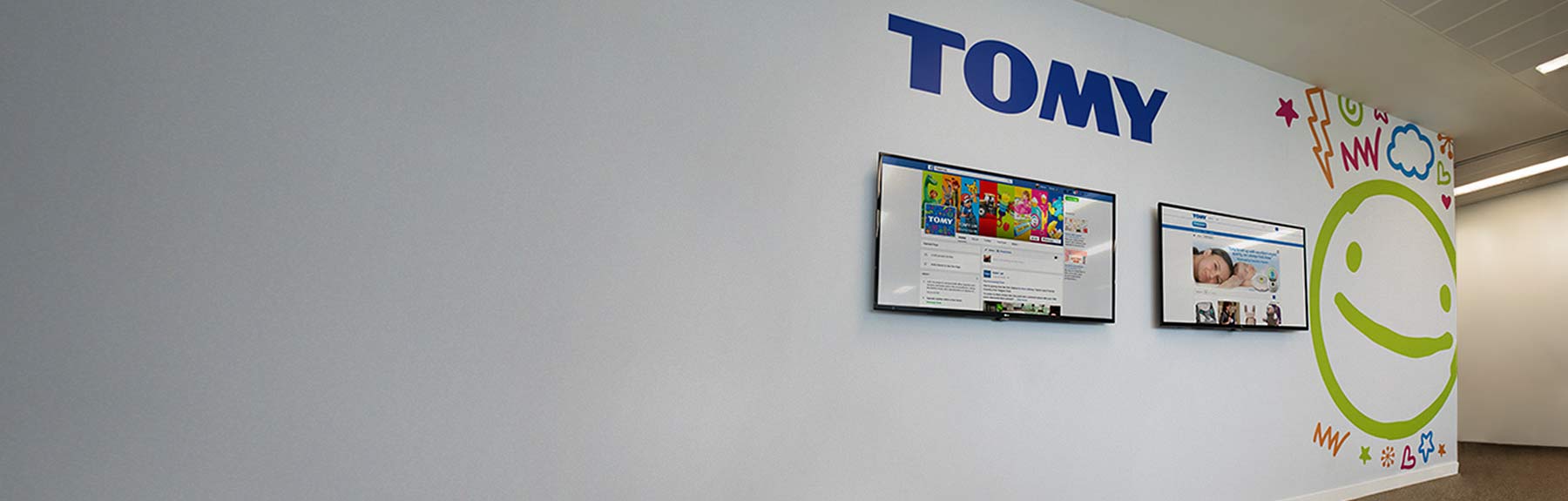

The final elements of the project involved installing three 49“ LG displays in the reception and communal meeting areas. Each of these displays were connected to a dedicated PC to showcase company news and corporate messages.

The Benefits

First class presentation environment

  • Cinos have delivered excellent presentation and conferencing capabilities for the Tomy showroom and boardroom.
  • Content can be viewed at ease courtesy of NEC projection. The strategic positioning of the projectors in the showroom allows all participants to see the content, regardless of their location in the room.
  • Ceiling mounted Logitech webcams deliver an exceptional video conferencing experience. Logitech’s most advanced webcam yet boasts an extended view of 90 degrees; perfect for product demonstrations.

Ease of Use

  • Cinos have delivered an easy to use presentation environment which allows staff to focus on the business at hand rather than being distracted by technology challenges
  • Each touch panel utilises the same client-branded interface to ensure the familiarity of the system is retained. The panel has been designed with the ease of use in mind; allowing any user to walk into the room and intuitively control the technology.
  • Users can share and collaborate on content with ease with the implementation of Barco ClickShare. With one click users can share their presentation from their laptop, tablet or smartphone with no prior installation required.

Cost effective

  • Rather than update the boardroom systems, Cinos proposed transferring the existing technology to the new Brooklands office. As the current solution was still fit for purpose, Cinos have avoided additional project costs for Tomy.
  • Where possible Cinos have chosen future-proof technology with a low cost of ownership. The NEC projectors offer a very long lamp and low power consumption. The introduction of Barco ClickShare caters for ‘non HDMI’ laptops; eliminating the need to incorporate legacy VGA technology.

The Technology

AMX Solutions

AMX MSD-701 Modero S Series Wall Mount Touch Panel

The AMX MSD-701 Wall Mount Touch Panel acts as the user interface in both the showroom and Boardroom. Cinos have ensured that the familiarity of the system is retained by applying the same client-branded design to each panel. Users can control the audio visual equipment with ease, whether that is displaying a range of video sources or changing volume levels.

Download the AMX 7” Modero® S Series Wall Mount Touch Panel datasheet here

AMX NX-2200 NetLinx® Integrated Controller

To enable control, automation and switching of technologies Cinos deployed the NI-700 and Modula RGBHV Matrix Switcher.

In both the showroom and Boardroom the NX-2200 acts as the interface between the touch panel and matrix switcher. Once a user interacted with the touch panel the NX-2200 runs the code to tell the matrix switcher how to respond to the specific command. By combining high performance, backward compatibility and extensive network security features, the NX-2200 provides a scalable, future-proof solution capable of managing a range of requirements.

Download the AMX NetLinx NX-2200 Controller datasheet here

partner-barco-logo-gs-t

Barco ClickShare

Wireless content sharing is achieved in both areas thanks Barco ClickShare. This easy to use solution requires no prior installation and allows users to start their presentation by simply pushing a button; whether from a USB-device connected to the presenters’ laptop, or by using the intuitive app for iPhone, iPad, or Android. ClickShare also automatically displays the most optimal resolution, without distorting the laptop display.

Extron resources and downloads

Extron MPS 602

The Extron MPS 602 was transferred from Sutton to Brooklands to act as the media presentation switcher for the boardroom. This simple to use, six input presentation switcher caters for both digital and analogue sources. Once a user has selected a command from the touch panel, the MPS 602 will respond based on signals from the NX-2200 controller.

Download the Extron MPS 602 datasheet here

partner-kramer-logo-gs-t

Kramer VS-42HN Matrix Switcher

The Kramer VS-42HN is a high performance matrix switcher for HDMI signals and sits at the heart of the showroom system. Working in conjunction with the NX-2200 controller, the Kramer switcher can route any input to any or all outputs simultaneously. To further enhance performance the fast switching technology reduces the switching delay between DVI/HDMI sources.

Download the Kramer VS-42HN datasheet here

NEC Solutions

NEC M402W Projectors

Users can share content or view the incoming video conferencing feed courtesy of three NEC M402W Projectors. Due to its size, the showroom utilises two projectors to ensure participants can clearly see regardless of their position in the room. In addition, their filter free design with dust-protected DLP light engine, very long lamp life and low power consumption results into remarkably low cost of ownership.

Download the NEC M402W datasheet here

Logitech

Logitech Webcam – C930e

High definition video conferencing is delivered with two Logitech Webcam C930e’s in each room. With a range of features which have been finely turned to enhance collaboration, Logitech’s most advanced webcam yet delivers a first class video conferencing experience. The extended view of 90 degrees provides the perfect platform for Tomy to demonstrate their products or deliver company presentations to remote teams and clients.

Download the Logitech Webcam C930e datasheet here

LG resources and downloads

LG 49LX341C Commercial Lite Integrated HDTV

Three LG LX341C displays were utilised in the reception and communal meeting areas. These 49” displays have a dedicated PC which have been configured to display company information and corporate messages. Designed to make areas more engaging and informative, the LG displays boast clean lines and HD resolutions as well as simple-to-use features created specifically for a public environment.

Download the LG 49lX341C datasheet here
