Project Description

Audio Visual Head Office Relocation Project

UK Head Office Relocation

In the spring of 2014 a global engineering, project management and construction company undertook a venture to relocate their UK head offices to a new site in North West London.

Cinos were invited to provide an in-depth proposal for the transfer of the audio visual estate from the existing head office to the new location. Working with the client, existing systems were audited to get an accurate picture of their technology and a clear understanding of business needs and future requirements. Once these were ascertained, Cinos were able to advise where a technology refresh was required, and current systems that could be relocated to the new head office.

“The office relocation project provided Cinos with a chance to truly understand our clients’ long-term objectives. As a result we have been able to deploy future-proof technologies which turn meeting rooms into multi-functional collaboration spaces. By ensuring these systems remain consistent across the site we have given familiarity for employees whilst minimising the amount and variety of issues that could arise.”
Steve Franklin, Technical Director

Download our Audio Visual Case Study

The Requirement

‘Ease of use’ was the principal consideration for the relocation project. Whilst the latest technologies were utilised to meet the bespoke requirements, it was of paramount importance that the user can walk into any one of the rooms and intuitively operate the system.

The new offices consist of nine meeting rooms, a management boardroom and three multifunctional, divisible meeting rooms. Designed for presentations and collaborative purposes these areas utilise a range of audio visual technologies.

The divisible meeting rooms are designed to cater for larger collaborative sessions. Each of these rooms act independently but when required, open up into a larger meeting space, with each of the room systems acting as one coherent solution.

Video conferencing was a key requirement for the new head office. Whilst areas such as the management boardroom contain dedicated systems, it was necessary to provide mobile units to enable any room to host a video conference.

With a number of meeting spaces available it is important these areas are managed effectively to avoid double bookings and interrupted meetings. A room booking system was required to enable the booking of meeting rooms from outside of the room and via integration with third party software.

Polycom ceiling microphone
NEC PA500U Projector
Polycom EagleEye camera
AMX Control

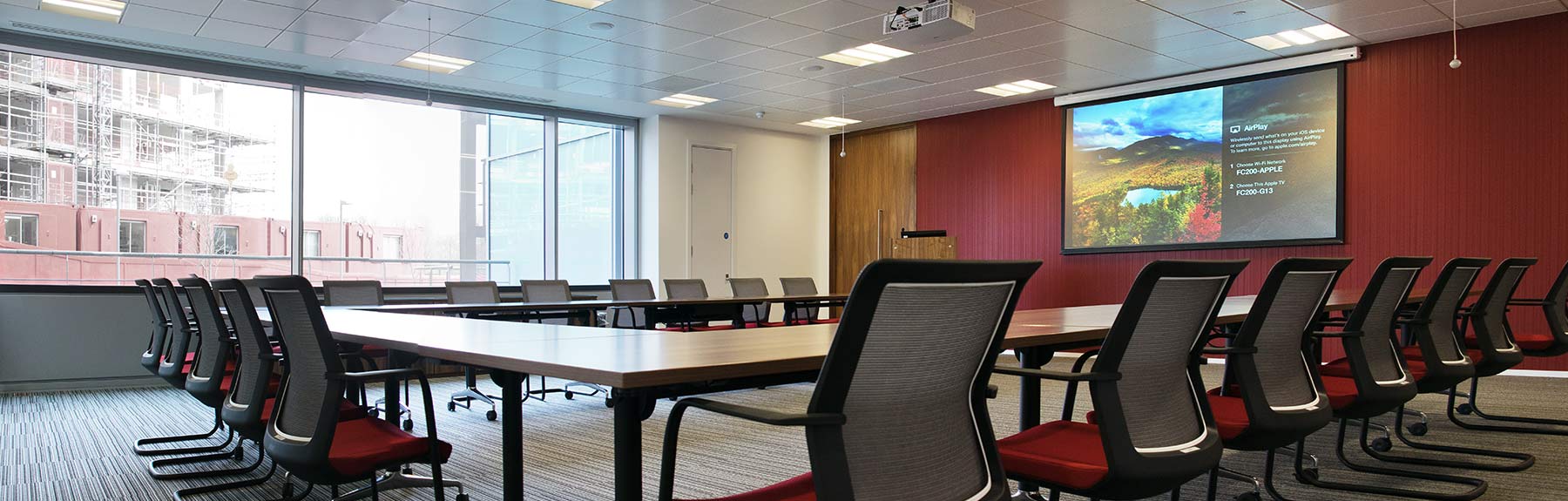

Divisible Meeting Room with video conferencing and projection

When relocating offices, display technology is always a key consideration. After working with the client to understand the layout and specific requirements of the new office, Cinos deployed a range of display solutions from NEC. All meeting areas within the office contain the NEC E Series range. These commercial grade displays utilise LED backlighting to provide a thinner, sleeker display; ideal for presentations and cross-company collaboration. Naturally in the communal area the displays are active for longer periods of time and so the V series from NEC are in place for their extended use and high performance design.

In addition to all the technical features, NEC displays provide further environmental advantages. An integrated backlight adjust setting allows employees to customise the backlight strength, enabling a longer display life and lower power consumption. An energy saving picture mode is also built into the on-screen menu to improve energy efficiency along with using scheduled power on/off functions to ensure displays are only powered up when the offices are occupied.

On any of these displays employees can catch up with the news or check out the latest company broadcast thanks to Tripleplay’s IPTV and Video on Demand (VOD) systems – TripleTV and TripleVOD. Whether in the communal areas or within meeting rooms, TripleTV delivers high quality content over

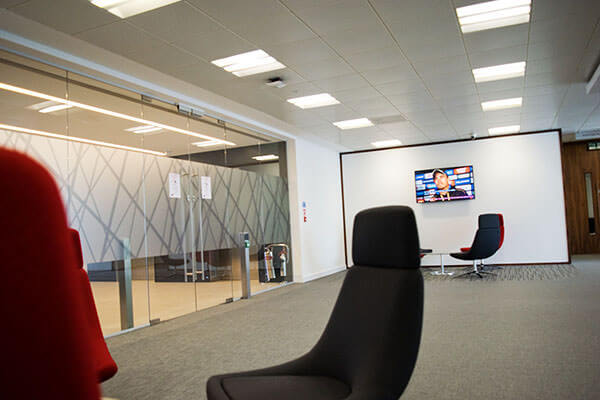

Reception area with NEC screen showing TripleTV

an IP network via a small form factor Amino Set Top Box (STB) installed behind each display.

The TripleVOD element provides employees with access to a range of pre-recorded corporate videos such as health & safety information, induction information, corporate videos and company updates. Furthermore Cinos integrated the multicast streams from the VBrick enterprise video platform used at the corporate head office for company updates. This has provided employees with a means of accessing a variety of corporate information by simply changing a channel on the television

In addition, the NVOD (Near Video on Demand) application from Tripleplay allows company presentations to be played on a continuous loop across four television channels. This is ideal for reception and greeting areas where visitors can quickly gain a decent overview of the company and its operations.

Wireless presentation functionality is available across all meeting spaces. Designed to enhance the meeting room experience, ClickShare from Barco allows any participant to share content from a laptop, tablet or smartphone at the click of a button. Whilst this has numerous collaborative capabilities, it also allows ‘non HDMI’ laptops to share content on the meeting room display;

NEC Display Solutions

further reducing the need to incorporate legacy VGA technology.

With a range of technology in place across the office, simple and intuitive control is of paramount importance. The AMX Modero S Series Touch Panels offer exactly this. Their simple to use, gesture-based interface and advanced features enable employees to conduct meetings simply and effectively. In addition, through providing a consistent, client-branded design, Cinos has ensured that the familiarity of the touch panel system is retained, whilst it manages the bespoke requirements of each area.

The Evoko Room Manager was chosen to avoid scenarios such as double bookings or interrupted meetings. Employees can check room availability and reserve meeting spaces from the 8” touch-sensitive screen located outside each room. Integration with the corporate email system provides further functionality; allowing employees to book meeting rooms from their desks via their computer, tablet or smartphone. The system also allows for an administrator to export usage statistics for each meeting space, showing how effectively the meeting spaces are being used and highlighting any usage trends such as participant numbers or specific technology requirements.

Meeting room with AV equipment

In such a large office numerous meetings are an inevitable reality, and so it is important to have sufficient resource in place to meet these demanding requirements. Working with the client, Cinos designed and installed audio visual solutions that would provide each of the nine rooms with presentation and collaborative capabilities.

Each meeting room contains an NEC 55” E554 display to show content from various sources. Employees can take advantage of desktop video conferencing applications such as Lync thanks to

Logitech C920 HD webcam

the Logitech C920 HD webcam used in conjunction with a Philips Bluetooth conferencing speaker and microphone. For the more demanding video conferencing requirements, one of three mobile conferencing systems can easily be moved into the room and integrated into the room system via an HDMI floor box connection.

Each mobile conferencing system is comprised of a Polycom HDX 7000 codec connected to an NEC 46” E464 display. Whilst these units can be used independently in the rooms, connecting to the HDMI floor box enables the video call to take

Evoko Room Booking System

place on the mobile display, with content sharing and collaborative capabilities utilised on the room display.

The AMX NI-700 NetLinx® Integrated Controller is used to meet the specific control and automation needs of each room. Ideal for single room environments the NI-700 enables employees to switch between various room sources such as ClickShare, TripleTV, the room PC and Polycom’s video conferencing. Users can select any of these sources via the AMX MST-701 7” Modero S Series Tabletop Touch Panel.

Divisible meeting rooms shown during opening

Designed as a true, multi-functional meeting space, these rooms utilise moveable partition walls to deliver a range of room formats for specific business requirements.

In single room mode meeting participants can enjoy videos, share content or access TV channels on an 106” electronic projection screen, courtesy of the NEC 5000-lumen projector. All audio requirements have been catered for thanks to the integrated Polycom SoundStructure C16 solution. At the touch of a button employees can join an audio conference or make a SIP or analogue call. Each room contains ceiling and lectern microphones, as well as ceiling speakers to provide consistent, high quality audio throughout the area.

Draper Electronic Projection Screen with NEC PA500U Projector

Barco ClickShare allows employees to share presentation content wirelessly in each room scenario. Additional content sharing capabilities is provided for employees with iPhones or iPads. By selecting Apple TV from the room touch panel, employees can instantly share their content without the worry of installing additional software or connecting cables.

To ensure the seamless transition between the various scenarios the AMX Enova DVX-3150HD sits at the heart of each room system. This all in one presentation switcher, amplifier, controller and video scaler provides control of the rooms audio visual systems via the AMX Touch Panel user interface. The Enova DVX and touch panels are programmed to adapt accordingly to each room scenario.

Divisible Meeting Room with Polycom Video Conferencing, Draper Projection Screen and NEC Projector

For larger sessions the partition walls can be removed to create either a dual or triple room meeting space. In dual or triple mode the remaining touch panels are programmed to power down so that all sources can be controlled via the central presentation touch panel. Here the central Enova DVX will control all inputs with the ability to push these to any output across each area.

In single room mode, video conferencing from Polycom is available in the main meeting room, as well as in in an ‘all rooms’ presentation scenario. In this situation the mobile conferencing units are connected to floor ports in the secondary rooms, acting as repeater displays whilst the master boardroom hosts the main video conferencing call.

NEC E Series Displays in Management Boardroom

Senior management can take advantage of collaborative and presentation functionality in the office’s management boardroom. Full audio and video conferencing capabilities are available thanks to Polycom’s HDX 7000 and C12 SoundStructure solutions. At the touch of a button employees can initiate a video or audio conference, or easily make a SIP or analogue telephone call.

AMX Touch Panel Solution

Sitting at the heart of the room system is the AMX Enova DVX-3150HD for control and switching of the Barco ClickShare solution, IPTV, room PC, video conferencing and employee laptops. Using the AMX MST-1001 Touch Panel solution, users can show any of these sources on the two commercial grade 55” E554 NEC displays for group presentations and cross-company collaboration.

Barco ClickShare tray and buttons

The Benefits

Site-wide consistency

Cinos have ensured that both the technology and user interfaces across the new office remain consistent.

  • The AMX Modero S Series Touch Panels are in place across all meeting areas. Each panel has the same client-branded user interface; ensuring whatever room an employee walks into, they can operate the system with ease.
  • The same video conferencing solution from Polycom is used for the mobile conferencing units, master divisible meeting room and management boardroom. This consistency ensures that once employees have been trained on the Polycom HDX 7000 system, they will be able to operate it regardless of its location in the office.
  • The Room Booking Manager from Evoko allows employees to check room availability and book meeting spaces via their PC, smartphone or tablet. This eliminates scenarios such as double bookings and interrupted meetings.
  • With a consistent range of technology in place, the amount and variety of issues that could arise naturally diminishes. Not only does this allow Cinos to more effectively support the audio visual estate, it also reduces the amount of spares that need to be held, providing further cost benefits to the client.

Future-proof technologies allow easy expansion

  • Cinos have specifically chosen market leading, professional grade products with a proven track record not only for their reliability but also in terms of the warranty packages available. If something was to go wrong, the warranties ensure a replacement product can be sourced quickly, minimising client disruption.
  • The ClickShare solution from Barco allows employees with ‘non HDMI’ laptops to connect and share content wirelessly; eliminating the need to incorporate legacy VGA technology.
  • Whilst Tripleplay’s solution is currently used for the IPTV and VOD requirements, the infrastructure is in place to add digital signage services for when the client’s needs evolve.
  • The AMX NI-700 and Enova DVX 3150 are in place to control the audio visual technologies in each area. The adoption of these technologies makes future expansion a much simpler process, whether that is adding more sources or providing extra control capabilities.

Multi-functional use of meeting spaces improves collaboration capabilities

  • The use of the mobile conferencing units can transform any of the nine meeting rooms from a presentation area into full video conferencing environment for enhanced collaboration and improved decision making.
  • The divisible meeting rooms can act as single presentation areas with full audio conferencing capabilities. For larger multi-participant meetings the rooms can open up into a single area with full video conferencing and enhanced collaborative capabilities.

Maintenance agreement reinforces client confidence

  • The Gold level maintenance and support agreement from Cinos allows the client to be confident that their audio visual and video conferencing systems will continue to run at peak efficiency. By having a trusted partner in this area the continued adoption of smarter working patterns is easily achieved.

The Technology

AMX Partner Page

AMX Enova® DVX-3150HD

The Enova DVX-3150HD has been deployed in the management boardroom and each of the three divisible meeting rooms. This All-In-One Presentation Switcher provides control of all the audio visual technologies in in each area; replacing the need for numerous individual components and eliminating the integration and reliability challenges that accompany them.

Download the AMX Enova DVX-3150HD Datasheet here

AMX NI-700 NetLinx® Integrated Controller

The NI-700 from AMX is geared to meet the specific control and automation needs of a single room environment. In each of the nine meeting rooms, the NI-700 acts as the interface between the touch panels and the room assets. It also allows for additional control capabilities to be added as the meeting room requirements evolve.

Download the AMX NI-700 NetLinx® Integrated Controller Datasheet here

AMX Modero S Series Touch Panels

AMX Modero S series touch panels provide a consistent user interface in all meeting areas. Designed as a control surface to manage a wide variety of digital and analogue devices, this intuitive, easy to use solution is perfect for boardrooms and collaboration areas.

Each touch panel boasts a client-branded design to ensure the familiarity of the system is retained whilst it manages the bespoke requirements of each area. Cinos have installed the 7” MST-701 Touch Panel in each of the nine meeting rooms and 10” MST-1001 Touch Panels in the each of the divisible meeting rooms and management boardroom.

Download the AMX MST-701 / 7″ Modero S Series Tabletop Touch Panel Datasheet here

Download the AMX MST-1001 / 10″ Modero S Series Tabletop Touch Panel Datasheet here

partner-barco-logo-gs-t

Barco ClickShare

ClickShare is Barco’s wireless presentation and collaboration system that allows any meeting participant to share content on the large format NEC displays. Installed in each area, the ClickShare solution improves the efficiency of meetings and enhances the decision making process. This wireless system also reduces the need to incorporate legacy VGA technology.

partner-nec-logo-gs-t

NEC Display Solutions
Throughout the office Cinos has installed a number of NEC display solutions. All meeting areas and mobile conferencing units contain the NEC E Series displays. This LCD range features brightness and contrast levels suitable for most applications, with multiple inputs that allow employees to work from a variety of sources. The communal areas utilise the 55” V Series displays for their 16/7 extended operating time.

Download the NEC V Series Display brochure here

Download the NEC E Series Display brochure here

NEC PA500U Advanced Professional Installation Projector
NEC’s 5000-lumen PA500U projectors are in each of the divisible meeting rooms. These powerful projectors are designed for advanced, professional installations and utilise high performance video processing to produce life-like images in applications such as video conferencing.

Download the NEC PA Series Specification Brochure here

partner-polycom-logo-gs-t

Polycom Conferencing Solutions

Audio and video conferencing is achieved throughout the office using solutions from Polycom. The management boardroom, divisible meeting rooms and mobile conferencing units each utilise the HDX® 7000 Series telepresence solution. The mobile conferencing units offer a more flexible video conferencing solution; eliminating the need to install codecs in each area.

Polycom’s SoundStructure® C-Series solution has been deployed to provide audio conferencing capabilities for the management boardroom and divisible meeting rooms. At the touch of a button employees can start an audio conference or make a SIP or analogue call. The advanced design and custom configuration capabilities of the SoundStructure solution enables world-class audio quality in all of the areas.

Download the Polycom® HDX® 7000 Series Datasheet here

Download the Polycom® SoundStructure Datasheet here

partner-tripleplay-logo-gs-t

TripleTV

With a requirement for site wide television access Cinos deployed Tripleplay’s IPTV solution – TripleTV. Behind each display in the office, Cinos have installed a small form factor Amino Set Top Box (STB) to decode the IPTV streams and give full freeview channel selection. Corporate messages from the VBrick enterprise video platform can be accessed through an additional channel within TripleTV.

With the Tripleplay infrastructure in place there are further opportunities to deliver video-on-demand and digital signage services as the client’s needs evolve.

Download the TripleTV IPTV Brochure here

TripleVOD

In order to provide employees with a library of corporate videos, Cinos integrated the video on demand solution from Tripleplay. Via the display remote control or AMX touch panel, employees can access a wide range of categorised corporate videos including health & safety information, corporate videos and company updates.

The NVOD application from Tripleplay enables the client to play company presentations across four channels in TripleTV. Placed on a continuous loop, these presentations are ideal for reception and greeting areas where visitors can gain a decent overview of the company and its operations.

With the Tripleplay infrastructure in place there are further opportunities to deliver digital signage services as the client’s needs evolve.

Download the TripleVOD Brochure here

Evoko Room Manager

The Evoko Room Manager was installed to provide a secure, reliable and easy to manage room booking solution. A stylish 8” touch-sensitive screen is placed outside each meeting room and allows employees to book a meeting or check the availability of other rooms. The seamless integration with existing email servers provides the client with an easy-to-use platform for effective meeting room management.

Download the Evoko Room Manager Datasheet here

Draper Electronic Projection Screens

Across the 3 divisible boardrooms Cinos installed the Targa 106” electric projection screen from Draper. Ideal for conference rooms and corporate boardrooms, the screen operates instantly at the touch of a button and the viewing surface can be lowered to any position with ease.

“By working closely with the IS&T department we have been able to integrate a range of audio visual and control technologies. These technologies better suit our clients’ new working practices and maximises the flexibility of their meeting spaces.”
James Austin, Senior Project Engineer
